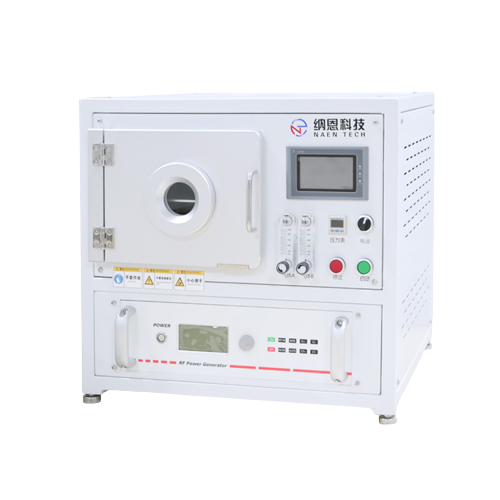

NE-OP10F Oxygen Plasma Cleaning Machine
首页 / 产品中心 / 低压真空等离子设备 / 小型等离子表面处理机(中频) / Oxygen Plasma Cleaning Machine

产品简介

Oxygen plasma cleaning machine is a non-destructive surface treatment equipment. In addition to the general surface cleaning function, it can also change the surface properties of specific materials, such as wettability, adhesion and so on. It is mainly used for surface cleaning, modification and etching of materials. The equipment uses numerical control technology to operate automatically, and the control of gas flux, vacuum degree and reaction time is very accurate. In addition, plasma cleaning will not cause secondary pollution to the substrate surface, and its composite product is also environmentally friendly to be carried out by gas.


产品参数

ModelNE-PE10F
Plasma generator Power0-300W(Adjusted)
Frequency13.56MHz
Chamber material316 stainless steel, military grade seal
Cavity volume10L
Discharge electrode2 aluminum alloy special electrode + 1 tray
Chamber Cavity size230( L)×270(D)×175(H)mm
Gas channel2 channels(supports various process gase)
Touch screen4.3’’
Power Supply220V
Overall dimensions600mm(L)×600mm(W) ×550mm(H)
